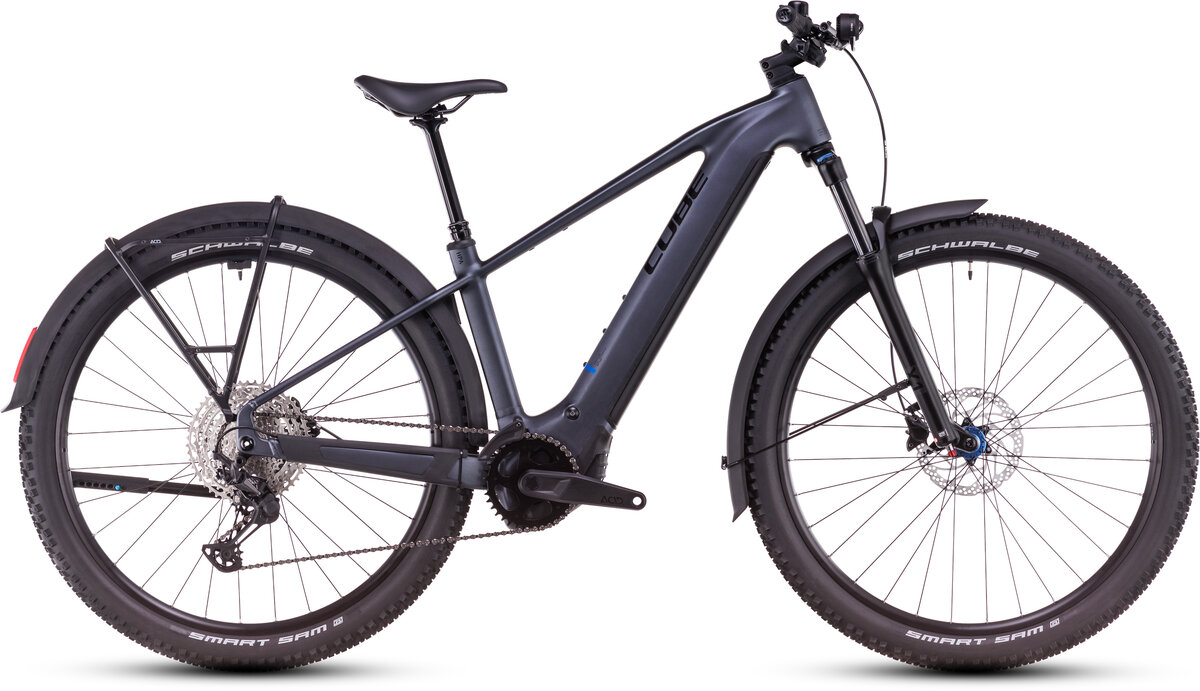

CUBE Bikes Reaction Hybrid Pro 800 Allroad
Details
The Reaction Hybrid Pro 800 Allroad combines the versatility of a fully equipped tourer and the ruggedness of a mountain bike, with added Bosch power. The mudguards, luggage carrier, kickstand, and lights are just the start. You can also tackle any route, off-road or on, with ease thanks to an 800 Wh battery and smooth, quiet Bosch CX drive. Combined with Shimano's easy-to-use XT 12-speed gears, it's all you need to comfortably ride any hill. For coming back down the other side, we fitted powerful Shimano hydraulic disc brakes and grippy Schwalbe 2.6in tires. There's also an air-sprung fork with 120mm of travel (100mm for small frame sizes and for all Easy Entry models) and a remote dropper seatpost for extra comfort and control on rougher trails.
| Frame Size | S | M | L | XL | XXL |
|---|---|---|---|---|---|
|
Seat tube (cm) |
370 | 405 | 450 | 495 | 545 |
| Top Tube Horizontal (cm) | 587 | 607 | 627 | 647 | 667 |
| Seat angle | 74.5° | 74° | 74° | 74° | 74° |
| Head tube angle | 67.5° | 67.5° | 67.5° | 67.5° | 67.5° |
| Chainstays (cm) | 456 | 470 | 470 | 470 | 470 |
| Head tube (cm) | 159 | 110 | 120 | 130 | 145 |
| Wheelbase (cm) | 1157 | 1176 | 1198 | 1218 | 1240 |
| BB-Height to Hub (cm) | 46 | 65 | 65 | 65 | 65 |
| Protrusion height - 80mm (cm) | 755 | 778 | 782 | 787 | 824 |
| Reach (cm) | 409 | 420 | 437 | 455 | 471 |
| Stack (cm) | 646 | 653 | 662 | 674 | 685 |
Specs
| Frame | Aluminum Superlite, Gravity Casting Technology, Agile Ride Geometry, Boost 148, UDH™, Full Integrated Battery, Advanced Internal Cable Routing, Kickstand/Fender/Carrier Mounting Points, Integrated Seatclamp |
|---|---|
| Fork | SR Suntour X1-32 LO-R Air, Tapered, 15x110mm, 120mm (27,5: 100mm) |
| Rims | CUBE EX30, 32H, Disc, Tubeless Ready |
| Hubs | CUBE Engineered By Newmen, 15mm, Boost, Centerlock/CUBE Engineered By Newmen, 12mm, Boost, Centerlock |
| Crankset | ACID MTB Hybrid Pro, 38T |
| Shifters | Shimano Deore SL-M6100-R, Rapidfire Plus |
| Rear Derailleur | Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed |
| Cassette/Freewheel | Shimano Deore CS-M6100, 10-51T |
| Brakes | Shimano BR-MT200, Hydr. Disc Brake (180) |
| Handlebars | CUBE Rise Trail Bar 35 |
| Tape/Grips | ACID React Pro |
| Stem | CUBE Performance Stem E-MTB 35, FPI-Link |
| Headset | ACROS AZF-1034, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) |
| Seatpost | CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm |
| Saddle | ACID Sequence Pro 160 |
| Pedals | ACID PP MTB |
| Motor | Bosch Drive Unit Performance Line CX 85Nm (BDU38), Smart System |
| Battery | Bosch PowerTube 800 |
| Controller/Display | Bosch Purion 200 w/ Integrated Display |
| Charger | Bosch 2A |
* Subject to change without notice.
